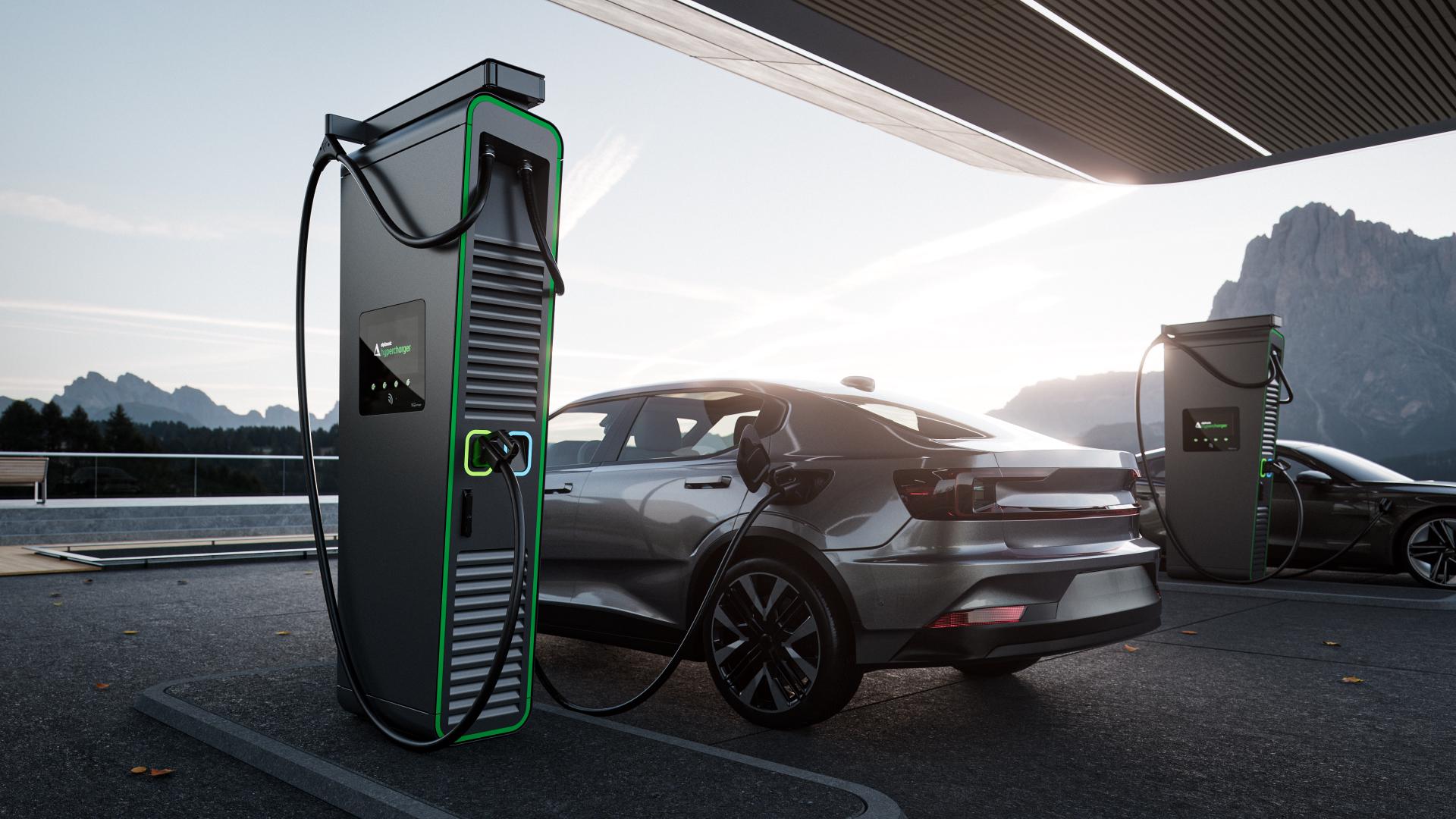

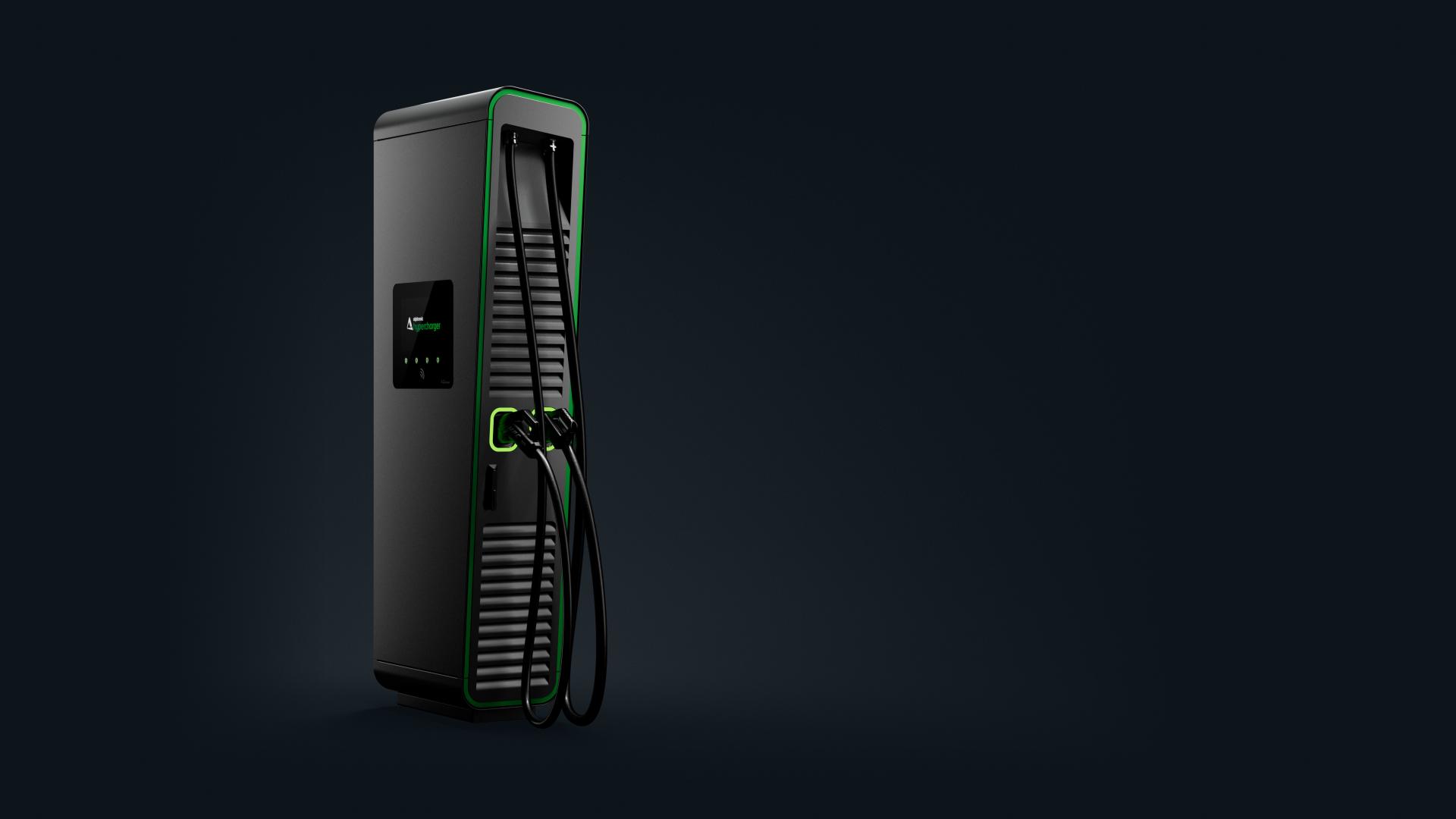

Powerful 200 kW fast charger with a small footprint
Small footprint
The sleek, all-in-one design occupies minimal space, making it ideal for installations where space is limited but high power is essential.
97.5 %
efficiency
Groundbreaking SiC semiconductors deliver a whole new level of efficiency.
Scalable
The SiC Power-Stack concept lets you scale from 100 to 200 kW, with easy upgrades and the assurance that your investment has a long future.
200kW power output
Charging two vehicles simultaneously at 100 kW each, or a single car at 200 kW, aligns perfectly with the steady rise in the average charging power of electric vehicles.
2x100 kW
simultaneous charging
EV charging power continues to surge each year, making it crucial to ensure an adequate power supply for each charging point.
Dynamic load management with 50 kW granularity
Significantly boosts flexibility and enables more efficient distribution of energy among vehicles.

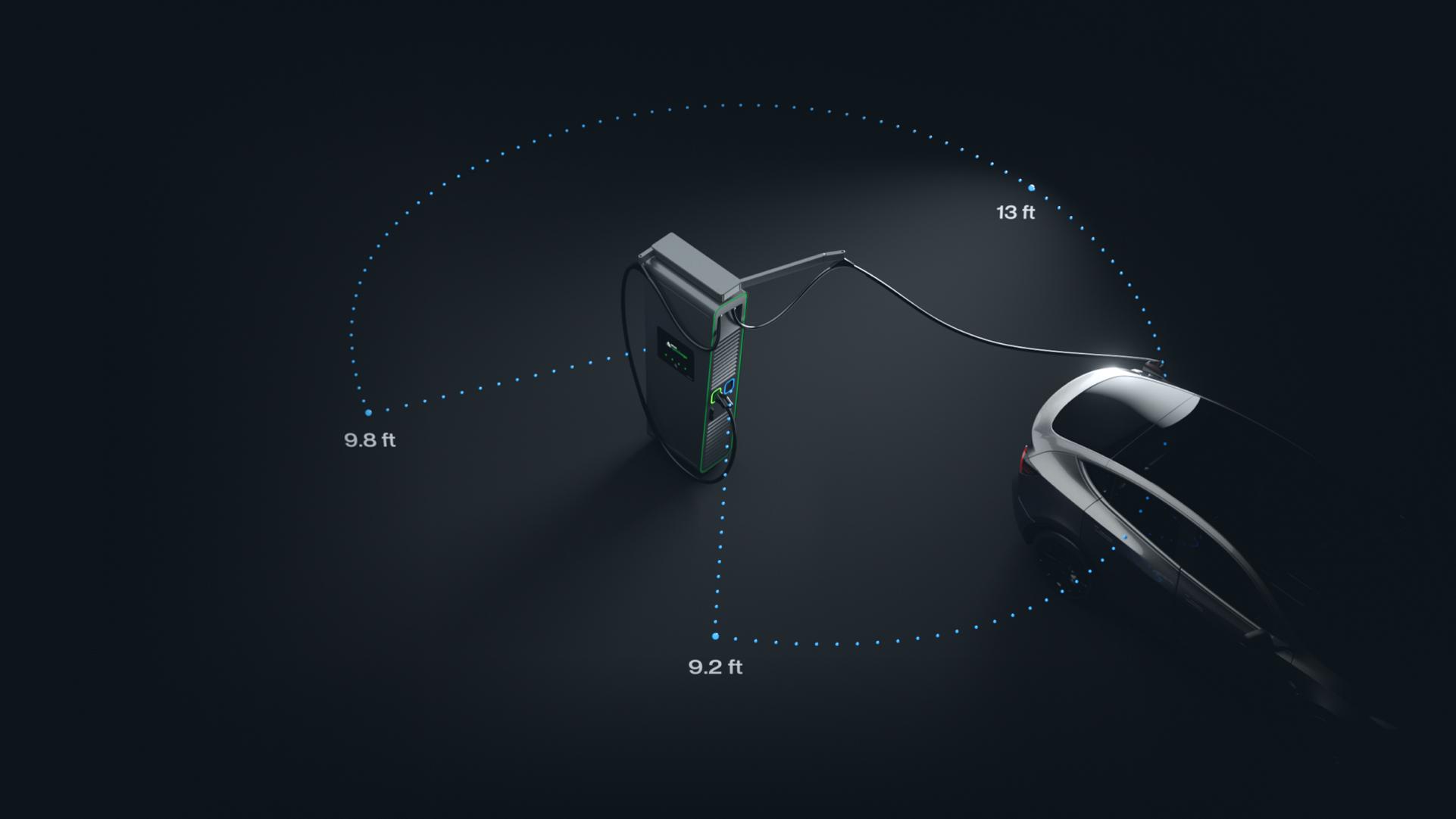

Cable management system
The cable management system enhances the user experience and prolongs the lifespan of the cable.
Customizable
Branding
Offering the option to customize the Hypercharger with a corporate design has consistently delighted customers and partners. Its housing includes advertising space that can be branded, ensuring the charger stands out with a unique personal touch.

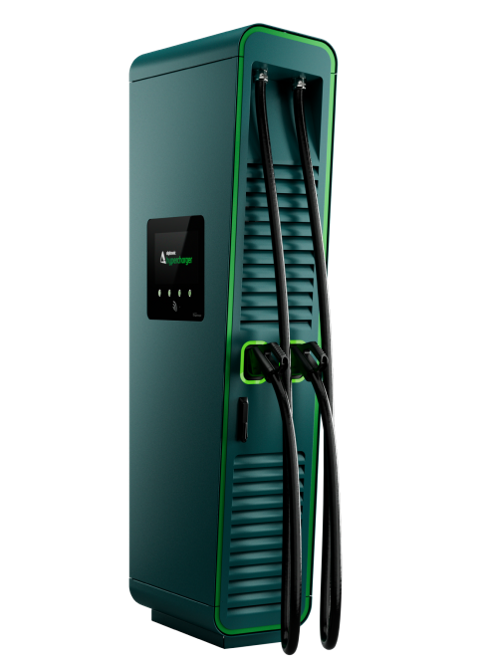

Customizable
Housing
Customize the housing with any color imaginable.

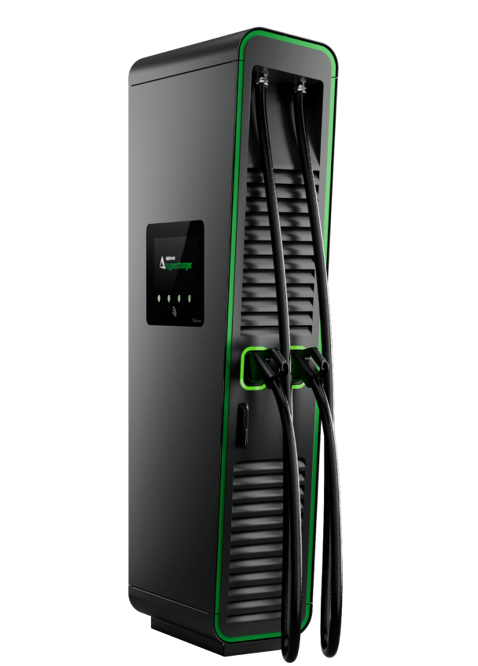

Customizable
Reflective stripe
Prominent reflective stripes can be customized to the color of choice, lending each Hypercharger its own distinguishing look.
Customizable
White-label
Choose to wrap just a section of the charger or cover it entirely—it's up to you! The outcome is a charging station uniquely tailored to your preferences, and the wrapping can be easily replaced for a fresh look whenever desired.
Technical specifications
Download DatasheetCharging Interface
01
Connector Options
CCS1, J3400 (NACS), CHAdeMO
02
Cable lengths
11.5 ft (3.5 m), 16.4 ft (5 m), 25 ft (7.5 m)
03
RFID system
ISO/IEC 14443A/B, ISO/IEC 15693, NFC
04
Network connections
Dual SIM, 4G LTE Modems, 10/100Base-T Ethernet
05
Energy Management
Configurable static power limit, Dynamic Power limit via OCPP/Modbus
06
Network Communications Protocol
Open Charge Point Protocol (OCPP) 1.6 and 2.0.1, Modbus, API
07
Vehicle Communications Protocol
DIN 70121, ISO 15118, Autocharge, Plug and Charge, CHAdeMO 1.2
Electrical
01
AC nominal voltage (RMS)
480V +/-10%
02
AC nominal input current (RMS)
240 A
03
Input Connection
3-Phase: L1, L2, L3, GND (no neutral)
04
Frequency
60 Hz
05
Power Factor
> 0.99 @ full load
06
THDi
< 5% @ full load
07
Conversion Efficiency
up to 97.5% @ full load
08
SCCR
65 kA
09
Surge Protection
Type 1, In 20 kA, Imax 50 kA
10
Standby power consumption
43W
11
DC output (1x Power-Stack)
100 kW, max. 300 A
12
DC output (2x Power-Stacks)
200 kW, max. 600 A
13
Output Voltage
150 VDC - 1000 VDC
General
01
Operating Temperature
-30 °C to 55 °C (-22 °F to 131 °F) (See Manual for environmental derate)
02
Storage/Transport Temperature
-40 °C to 70 °C (-40 °F to 158 °F)
03
Altitude
<4,000m (<13,000ft) (See Manual for environmental derate)
04
Humidity (in operation, storage)
Up to 95% non-condensing
05
Enclosure type
NEMA 3R (IP54) Indoor/Outdoor
06
Impact Resistance (IEC 62262)
IK10
07
Noise emission
< 52 dBA (60 °F [20 °C], 10 ft [3 m] distance)
08
Dimensions (H x W x D)
86 x 16 x 26 in (2185 x 420 x 663 mm)
09
Weight
717 lbs to 1019 lbs (325 kg to 462 kg)
10
Accessibility
Meets ADA requirements for height and reach
11
User interface
15.6” display, 4 buttons, RGB connector status
12
Multilingual system
27 languages available
13
Remote Management
Access control, configuration, diagnostics, software updates
Configuration Options
01
Branding
Options for custom colors (powder coating), custom vinyl
02
CMS (Cable Management System)
Metal swing arm keeps 16.4 ft (5 m) off the ground
03
Payment system
Credit card reader optional (Payter/Nayax), EMV Chip, Tap to Pay
Compliance and Safety
01
NRTL
UL 2202, UL 2231-1, UL 2231-2
02
Metering
CTEP No. 5966-2
03
EMC
FCC 47CFR Part 15B (Class A)
04
Electrical Safety
NEC (NFPA 70) Article 625
05
NEVI
Buy America, 100% US Steel(5)
Hyperservices
The Hypercharger after-sales team provides 24/7 support, including both remote and on-site assistance. Alpitronic handles all technical questions, repairs, and maintenance, collaborating with certified partners for on-site troubleshooting. Service options are flexible and include CPMS integration support.
Hypersuite
To guarantee an exceptional level of service for customers and partners, both during and after their Hypercharger purchase, Alpitronic has created a comprehensive ecosystem of applications with a dual purpose: to provide invaluable information and training, and to empower customers to effortlessly monitor and configure their chargers.
