Compact wall-mountable 50 kW charger
97 %
efficiency
Groundbreaking new SiC semiconductors deliver a whole new level of efficiency.
Low noise level
The perfect solution for residential installations.
Various installation options
The HYC50 offers an unrivaled versatility: the convenient pedestal option enables limitless possibilities for indoor and outdoor installations.
50 kW
Charge one vehicle at 50 kW and a continuous charging current of 150 A.
2x25 kW
Charge two vehicles simultaneously at 2x 25 kW.
Various cable options
All prevalent charging standards supported. Various cable length options and diverse cooling media ensure the best fit for your specific use case. The cable management system provides ease of use and ensures a longer cable lifespan.

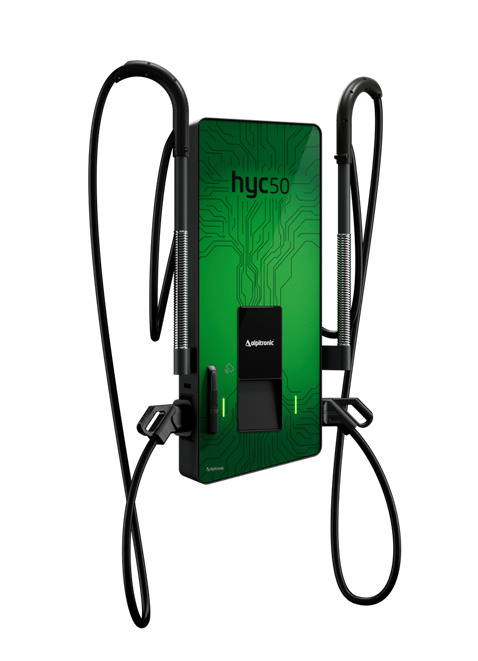

Customizable
Design front
Elevate the high-class and compact design of the HYC50 by adding a personalized back-printed graphic to the front panel.

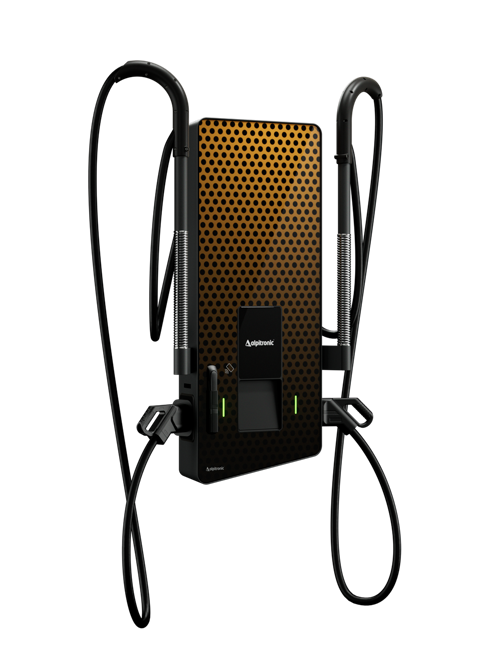

Customizable
Design front
Elevate the high-class and compact design of the HYC50 by adding a personalized back-printed graphic to the front panel.
Customizable
Design front
Elevate the high-class and compact design of the HYC50 by adding a personalized back-printed graphic to the front panel.
Customizable
Design front
Elevate the high-class and compact design of the HYC50 by adding a personalized back-printed graphic to the front panel.
Design front
HYC50: Back-printed design front
Elevate the high-class and compact design of the HYC50 by adding a personalized back-printed graphic to the front panel.
Technical specifications
Download DatasheetCharging Interface
01
Connector Options
CCS1, J3400 (NACS), CHAdeMO
02
Cable lengths
14.5 ft (4.5 m), 25 ft (7.5 m)
03
RFID system
ISO/IEC 14443A/B, ISO/IEC 15693, NFC
04
Network connections
Dual SIM, 4G LTE Modems 10/100Base-T Ethernet
05
Energy Management
Configurable static power limit, Dynamic Power limit via OCPP/Modbus
06
Network Communications Protocol
Open Charge Point Protocol (OCPP) 1.6 and 2.0.1, Modbus, API
07
Vehicle Communications Protocol
DIN 70121, ISO 15118, Autocharge, Plug and Charge, CHAdeMO 1.2
Electrical
01
AC nominal input voltage (RMS)
480 V +/-10%
02
AC nominal input current (RMS)
63 A
03
AC Input current and power (line-side)
90 A, 52 kW
04
Recommended Minimum OCPD
80 A
05
Input Connection
3-Phase: L1, L2, L3, GND (no neutral)
06
Frequency
60 Hz
07
Power Factor
> 0.99 @ full load
08
THDi
< 5% @ full load
09
Conversion Efficiency
up to 97% @ full load
10
SCCR
25 kA
11
Surge Protection
Type 1, In 20kA, Imax 50kA
12
Standby power consumption
23 W
13
Max Output Power
50 kW
14
Max Output Current
150 A
15
Output Voltage
150 VDC - 1000 VDC
General
01
Operating Temperature
-30 °C to 55 °C (-22 °F to 131 °F) (See Manual for environmental derate)
02
Storage/Transport Temperature
-40 °C to 70 °C (-40 °F to 158 °F)
03
Altitude
<4,000 m (<13,000 ft) (See Manual for environmental derate)
04
Humidity Humidity (in operation, storage)
Up to 95% non-condensing
05
Enclosure
NEMA 3R (IP54) Indoor/Outdoor
06
Impact Resistance (IEC 62262)
IK10
07
Noise emission
< 50 dBA (60 ° F [20 °C], 10 ft [3 m] distance)
08
Dimensions (H x W x D)
51 x 21 x 10 in (1300 x 520 x 250 mm)
09
Weight
209 lbs to 320 lbs (95 kg to 145 kg)
10
Accessibility
Meets ADA requirements for height and reach
11
User interface
10.1” touch screen, RGB connector status
12
Multilingual system
27 languages available
13
Remote Management
Access control, configuration, diagnostics, software updates
Configuration Options
01
Branding
Options for custom colors (powder coating), custom faceplate
02
CMS (Cable Management System)
Keeps 14.5 ft (4.5 m) off the ground
03
Mounting
Pedestal or Wallmount Kit
04
Payment system
Credit Card Reader optional (Payter/Nayax), EMV Chip, Tap to Pay
Compliance and Safety
01
NRTL
UL 2202, UL 2231-1, UL 2231-2, CSA C22.2 No. 346.22, No. 281.1-12, No. 281.2-12, TUV File No. U8U 108852 0005
02
Metering
CTEP No. 5966-24
03
EMC
FCC 47CFR Part 15B (Class A),
04
Electrical Safety
NEC (NFPA 70) Article 625
