HYCHYC

The world's most efficient 400 kW charger

97.5 %

efficiency

Groundbreaking new SiC semiconductors deliver a whole new level of efficiency.

Scalable

The Power-Stack concept allows for seamless scaling from 100 kW to 400 kW, offering easy upgrades and ensuring that your investment remains future-proof for years to come.

2x 200 kW simultaneous charging

EV charging power continues to increase each year, making it crucial to ensure an adequate power supply for each charging point.

400 kW

power output

A 400 kW charging capacity is ideal for significantly reduce charging times for heavy-duty vehicles.

1efficiencyscalability2x 200 kW400 kW

Dynamic load management with 50 kW granularity

Significantly boosts flexibility and enables more efficient distribution of energy among vehicles.

Graph

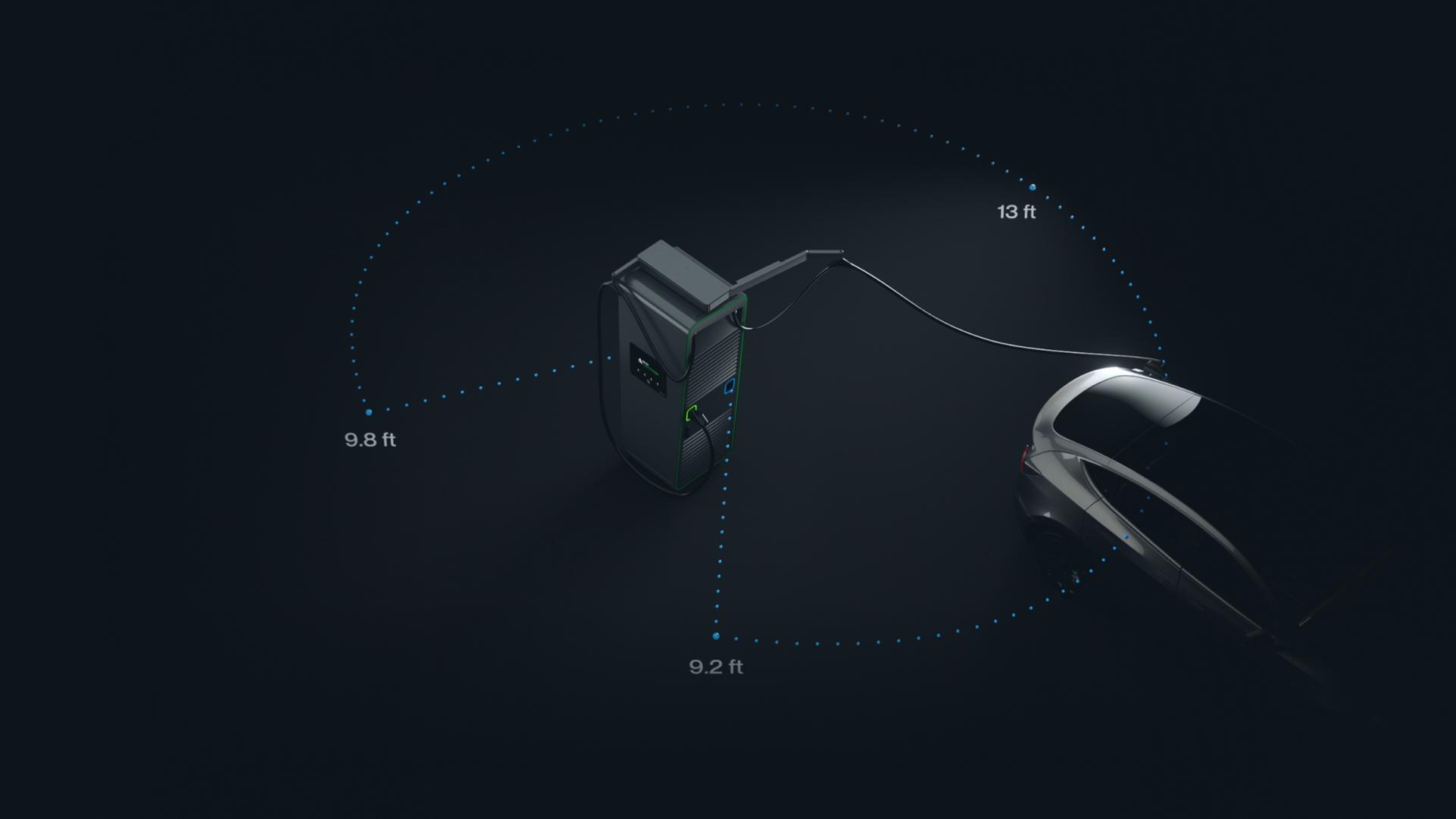

Cable management system

The cable management system enhances the user experience and prolongs the lifespan of the cable.

Customizable

Branding

Offering the option to customize the Hypercharger with a corporate design has consistently delighted customers and partners. Its housing includes advertising space that can be branded, ensuring the charger stands out with a unique personal touch.

Customizable

Housing

Customize the housing with any color imaginable.

Customizable

Reflective stripe

Prominent reflective stripes can be customized to the color of choice, lending each Hypercharger its own distinguishing look.

Customizable

White-label

Choose to wrap just a section of the charger or cover it entirely—it's up to you! The outcome is a charging station uniquely tailored to your preferences, and the wrapping can be easily replaced for a fresh look whenever desired.

Scroll ImageScroll ImageScroll ImageScroll Image
Configure

Click below to customize the Hypercharger's colors, adjust the output power, choose the connector types, cable lengths, and more.

Configure now

Technical specifications

Download Datasheet
Charging Interface

01

Connector Options

CCS1, J3400 (NACS), CHAdeMO

02

Cable lengths

11.5 ft (3.5 m), 16.4 ft (5 m), 25 ft (7.5 m)

03

RFID system

ISO/IEC 14443A/B, ISO/IEC 15693, NFC

04

Network connections

Dual SIM, 4G LTE Modems, 10/100Base-T Ethernet

05

Energy Management

Configurable static power limit, Dynamic Power limit via OCPP/Modbus

06

Network Communications Protocol

Open Charge Point Protocol (OCPP) 1.6 and 2.0.1 Modbus, API

07

Vehicle Communications Protocol

DIN 70121, ISO 15118, Autocharge, Plug and Charge, CHAdeMO 1.2

Electrical

01

AC nominal voltage (RMS)

480 V +/-10%

02

AC nominal input current (RMS)

480 A

03

Input Connection

3-Phase: L1, L2, L3, GND (no neutral)

04

Frequency

60 Hz

05

Power factor

> 0.99 @ full load

06

THDi (total harmonic distortion)

< 5% @ full load

07

Conversion efficiency

up to 97.5% @ full load

08

SCCR

65 kA

09

Surge Protection

Type 1, In 20 kA, Imax 50 kA

10

Standby power consumption

43W

11

DC output (1x Power-Stack)

100 kW, max. 300 A

12

DC output (2x Power-Stacks)

200 kW, max. 600 A

13

DC output (3x Power-Stacks)

300 kW, max. 900 A (600 A max. per cable)

14

DC output (4x Power-Stacks)

400 kW, max. 1200 A (600 A max. per cable)

15

Output Voltage

150 VDC - 1000 VDC

General

01

Operating Temperature

-30 °C to 55 °C (-22 °F to 131 °F) (See Manual for environmental derate)

02

Storage/Transport Temperature

-40 °C to 70 °C (-40 °F to 158 °F)

03

Altitude

<4,000m (<13,000 ft) (See Manual for environmental derate)

04

Humidity (in operation, storage)

Up to 95% non-condensing

05

Enclosure

NEMA 3R (IP54) Indoor/Outdoor

06

Impact Resistance (IEC 62262)

IK10

07

Noise emission

< 52 dBA (60 °F [20 °C], 10 ft [3 m] distance)

08

Dimensions (H x W x D)

88 x 29 x 26 in (2185 x 732 x 663 mm)

09

Weight

827 Ibs to 1710 Ibs (375 kg to 775 kg)

10

Accessibility

Meets ADA requirements for height and reach

11

User interface

15.6” display, 4 buttons, RGB connector status

12

Multilingual system

27 languages available

13

Remote Management

Access control, configuration, diagnostics, software updates

Configuration Options

01

Branding

Options for custom colors (powder coating), custom vinyl

02

CMS (Cable Management System)

Metal swing arm keeps 16.4 ft (5 m) off the ground

03

Payment system

Credit card reader optional (Payter/Nayax), EMV Chip, Tap to Pay

Compliance and Safety

01

NRTL

UL 2202, UL 2231-1, UL 2231-2, CSA C22.2 No. 346.22, No. 281.1-12, No. 281.2-12, File No. E515867

02

Metering

CTEP No. 5966-24

03

EMC

FCC 47CFR Part 15B (Class A)

04

Electrical Safety

NEC (NFPA 70) Article 625

05

NEVI

Buy America, 100% US Steel(5)
