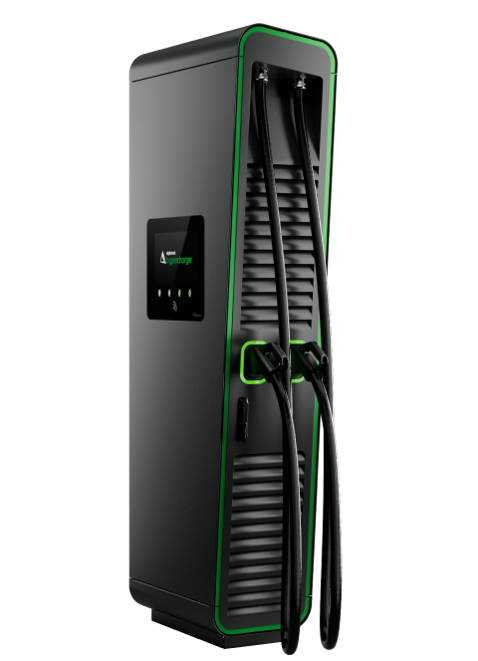

Powerful 200 kW fast charger with a small footprint

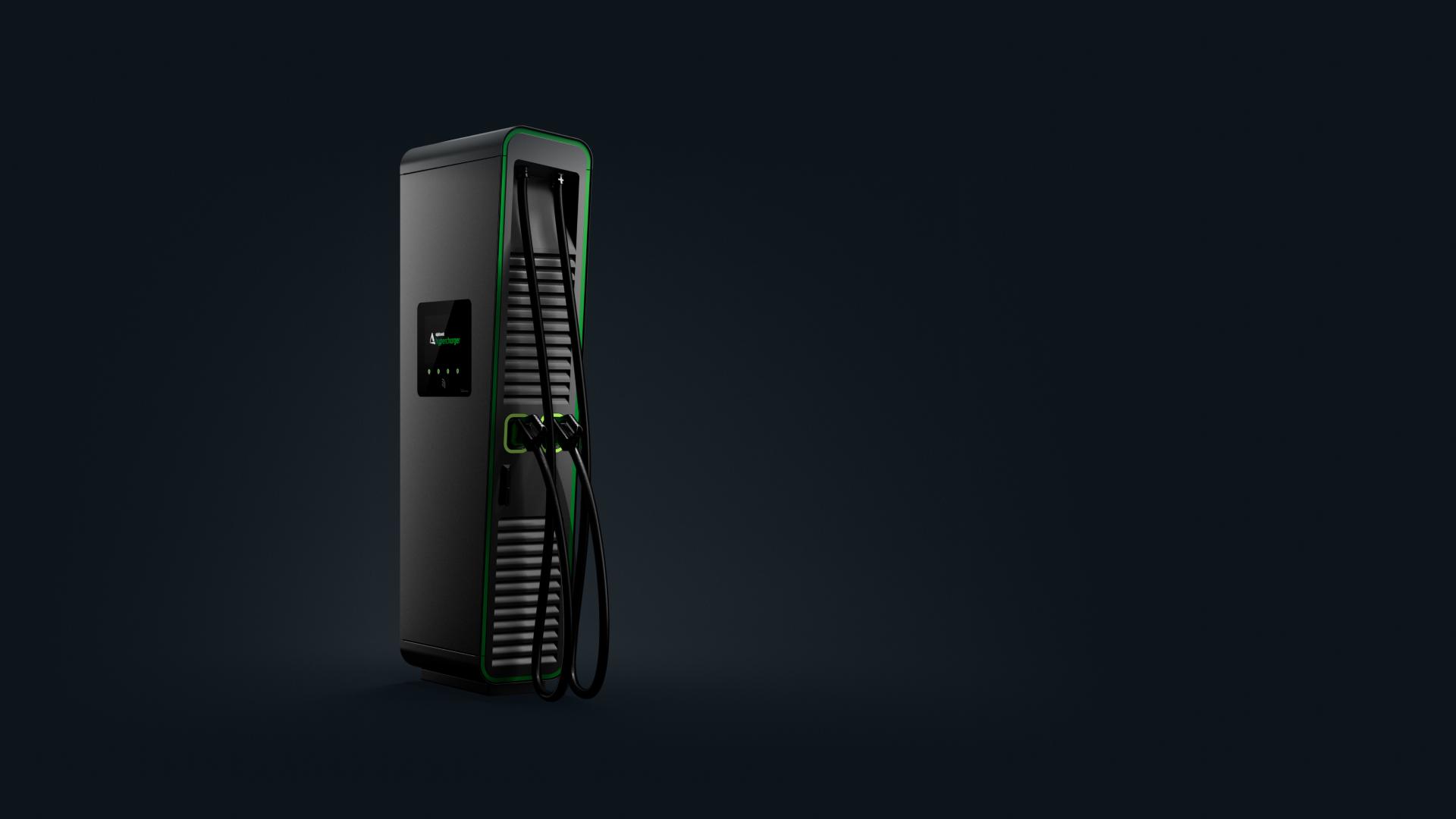

Small footprint
The sleek, all-in-one design occupies minimal space, making it ideal for installations where space is limited but high power is essential.
97.5 %
efficiency
Groundbreaking SiC semiconductors deliver a whole new level of efficiency.
Scalable
The Power-Stack concept lets you scale from 100 kW to 200 kW.
200 kW power output
Charging two vehicles simultaneously at 100 kW each, or a single car at 200 kW, aligns perfectly with the steady rise in the average charging power of electric vehicles.
Dynamic load management with 50 kW granularity
Significantly boosts flexibility and enables more efficient distribution of energy among vehicles.

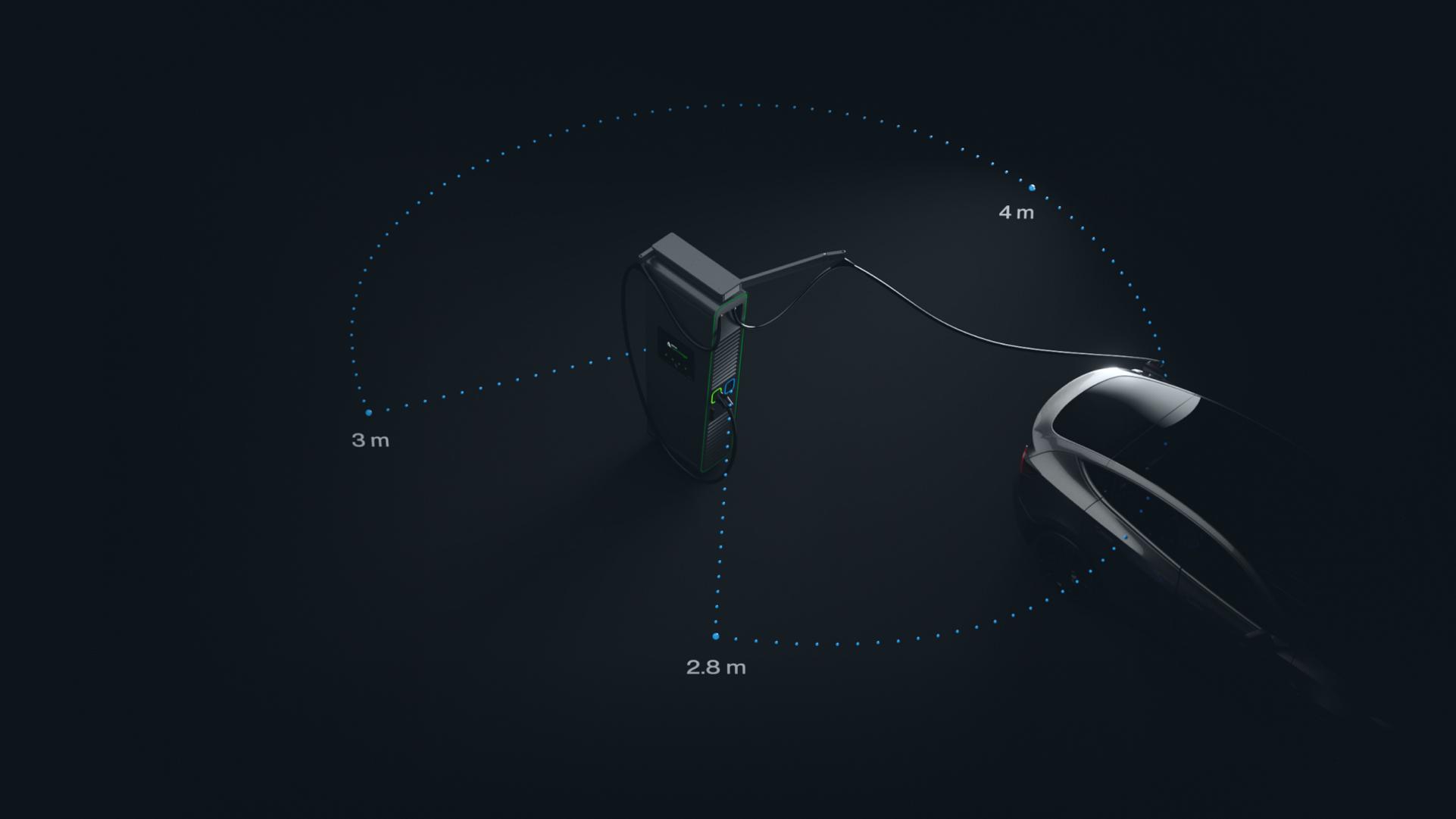

Cable management system
The cable management system provides ease of use and ensures a longer cable lifespan.
Customizable
Branding
The option to personalize the Hypercharger with a corporate design has always been a big hit with customers and partners. Its housing features advertising space that can be branded to make the charger uniquely personal.
Customizable
Housing
Personalize the housing with any color imaginable.
Customizable
Reflective stripe
Prominent reflective stripes can be customized to the color of choice, lending each Hypercharger its own distinguishing look.
Customizable
Wrapping
Wrap just part of the station or all around: The customer decides! The result is a uniquely personalized charging station and the foiling can be swapped out for a new look at any time.
Technical specifications
Download DatasheetSystem specifications
01
DC interfaces
CCS2, CHAdeMO, CCS1*, NACS*, GB/T* | (*Only upon special request by OEMs)
02
Load and charging management
Smart, dynamic allocation of power modules and distribution of charging power to charging points.
03
Operating temperature
-30 °C up to +55 °C
04
Operating height
≤ 4,000 m a.s.l. (For configuration with CHAdeMO cables, the max. installation height is limited to 2,000 m a.s.l.)
05
Environmental conditions, in storage
-40 °C up to +55 °C
06
Environmental conditions, under transport
-40 °C up to +70 °C
07
Humidity (in operation, storage)
10% - 95% relative (non-condensing)
08
Efficiency
up to 97,5%
09
Protective class
Class I (protective earth connection)
10
Environment pollution degree
Class 4
11
Noise emission
< 52 dBA (Standard environmental conditions [20° C, 3 m distance])
12
Installation location
Indoor and outdoor installation
13
Type of installation
Floor mounted on plinth or base (Optional concrete foundation base)
14
Inlet cable
1x 300 mm² per phase, max. ⌀ 33 mm per conductor
15
Protection rating
IP54
16
Impact resistance
IK10 in accordance with IEC 62262
17
Dimensions (H x W x D)
2185 x 420 x 663 mm
18
Weight
325 kg up to 462 kg (Depending on the configuration)
19
User interface
15.6” display, 4 buttons
20
Remote Management
Remote access, diagnostics, software updates
Power Supply
01
AC nominal voltage (RMS)
400 V -15% | +10%
02
AC maximum input current (RMS)
320 A
03
Frequency
50 Hz | 60 Hz
04
Network type
3phase TN-C | TN-S | TN-C-S | TT
05
Power Factor
> 0.99 @ full load
06
Controllable PF range
±0.95
07
THDi
< 5% @ full load
08
Efficiency
up to 97.5% @ full load
09
Overvoltage category
OVC III, DIN EN 60664-1
10
Integrated coordinated lightning protection (SPD)
Type 1 + 2 + 3
11
Standby power consumption
43 W
Charging Interfaces
01
Maximum total DC output power (1x Power-Stack)
100 kW, max. 300 A
02
Maximum total DC output power (2x Power-Stacks)
200 kW, max. 600 A
03
Granularity of output power
50 kW
04
Maximum output current
500 A continuous (600 A boost)
05
Output DC voltage range
150 Vdc - 1000 Vdc
06
Charging connection options
CCS2 up to 500 A (prepared for 600 A boost*), CHAdeMO up to 200 A, CCS1, GB/T | (*Preliminary data)
07
Cable lengths
3.5 m or 5 m with or without Cable Management System (CMS)
Configuration Options
01
Branding
Options for custom colours (powder coating), foil application and stickers
02
CMS (Cable Management System)
For 5 m cables, provides ease of use and ensures a longer cable lifespan
03
Mounting
Floor mounted on plinth or base (Optional concrete foundation base)
04
Accessibility
Optional, barrier-free version for the operating elements and plugs in terms of installation height (1,050 mm each) is possible (in accordance with DIN 18040-3)
05
Payment system
Choose between different card readers for credit cards or EC card, QR-Code-reader
06
Law on Weights and Measurements
DC meters available in accordance with the German Calibration Law
07
Parameterization of noise levels
Parameters can be set for the maximum noise level for day and night operation (e.g. for use in sensitive areas)
08
Additional safety features
Emergency stop button (optional), external emergency stop, crash (tilt) sensor, door contact switch
09
Multilingual system
GUI in 27 languages
Norms, compliance and standards
01
DC standard protocol (communications with the vehicle)
CCS1/2: SAE J1772 / EN 61851-24/DIN SPEC 70121; ISO 15118 | CHAdeMO 1.2 | GB/T 27930 (for automotive multicharger)
02
RFID system
RFID reader (ISO/IEC 14443A/B, ISO/IEC 15693)
03
Network connections
LTE/UMTS/GSM Modem 4G/3G/2G, 10/100Base-T Ethernet
04
Communications protocol for the charging infrastructure
Open Charge Point Protocol (OCPP) 1.6 J, ready for 2.0 J
05
Certifications
TÜV Süd CB in progress
06
EU Directive
2014/53/EU (RED), 2011/65/EU (RoHS2), 2015/863/EU (RoHS3), 2012/19/EU (WEEE), 1907/2006 (REACH Regulation)
07
Electrical Safety
IEC 61851-1, IEC 61851-23, IEC 61439-7 (as required by IEC 61851 series), IEC 62311, IEC 62477-1
08
RED
ETSI EN 301 330; ETSI EN 301 511, ETSI EN 301 908-1; ETSI EN 301 893; ETSI EN EN 300 328
09
EMC
EN 61000-6-4, EN 61000-6-2, IEC 61851-21-2 (INDUSTRIAL ENVIRONMENTS), ETSI EN 301 489-1, ETSI EN 301 489-3; ETSI EN 301 489-52
Hyperservices
The Hypercharger after-sales team provides 24/7 support, including both remote and on-site assistance. Alpitronic handles all technical questions, repairs, and maintenance, collaborating with certified partners for on-site troubleshooting. Service options are flexible and include CPMS integration support.
Hypersuite
To guarantee an exceptional level of service for customers and partners, both during and after their Hypercharger purchase, Alpitronic has created a comprehensive ecosystem of applications with a dual purpose: to provide invaluable information and training, and to empower customers to effortlessly monitor and configure their chargers.
