Compact wall-mountable 50 kW charger
97 %
efficiency
Groundbreaking SiC semiconductors deliver a whole new level of efficiency.
Low noise level
The perfect solution for residential installations.
Various installation options
The HYC50 offers an unrivaled versatility: the convenient pedestal option enables limitless possibilities for indoor and outdoor installations.
50 kW
Charge one vehicle at 50 kW and a continuous charging current of 150 A.
2x 25 kW
Charge two vehicles simultaneously, each at 25 kW.

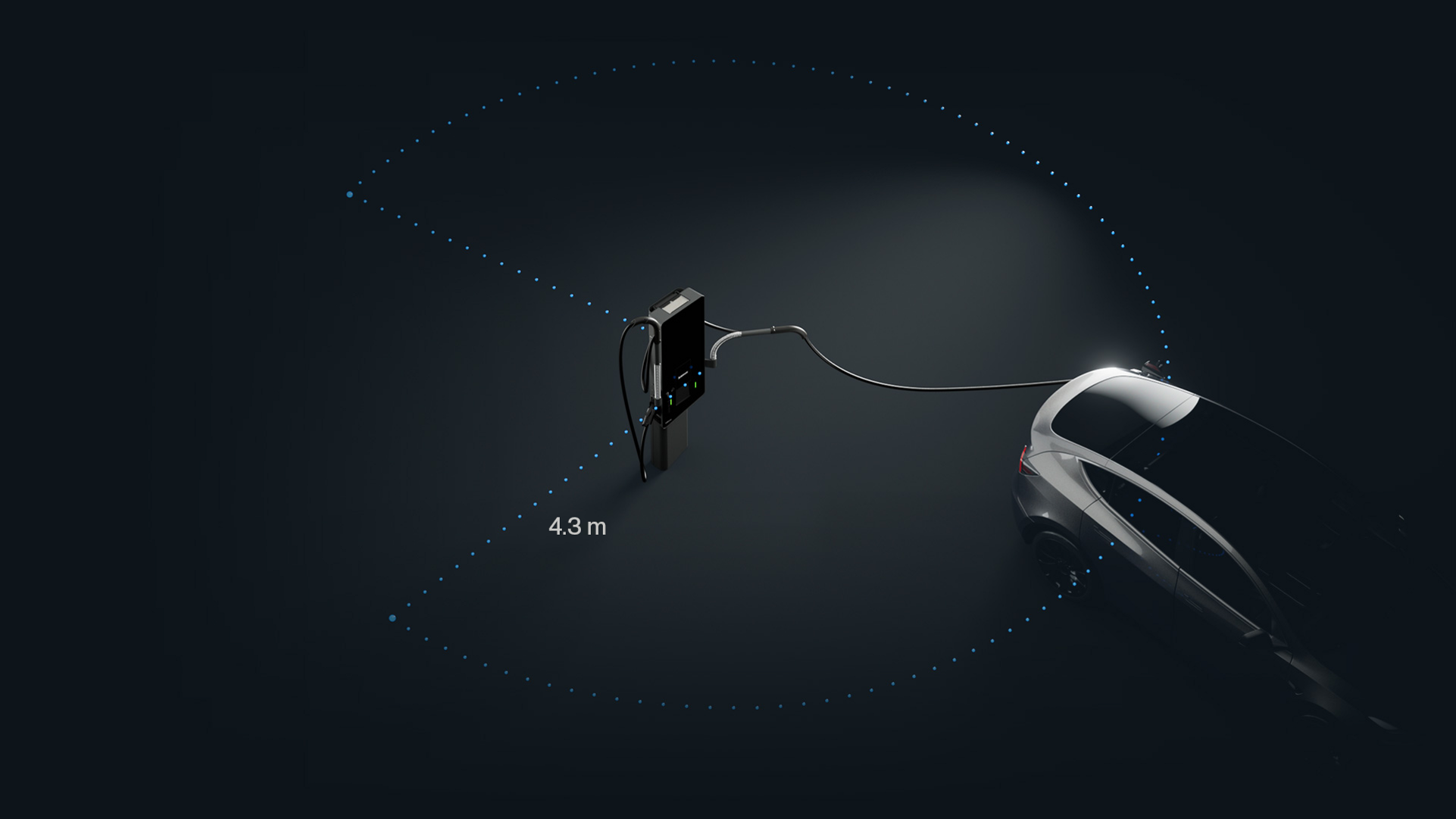

Cable management system
The cable management system provides ease of use and ensures a longer cable lifespan.

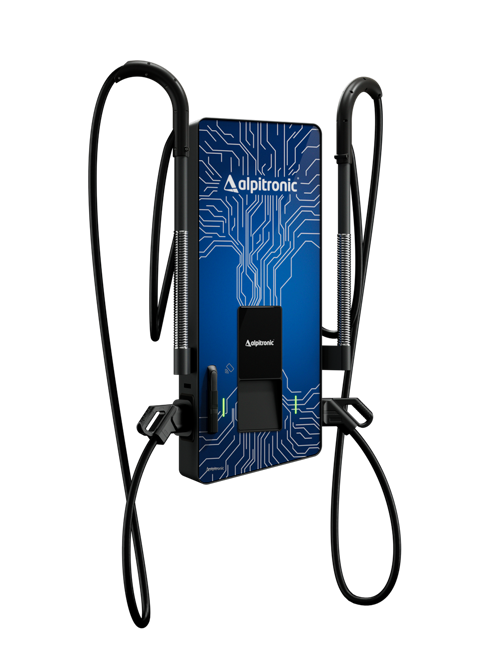

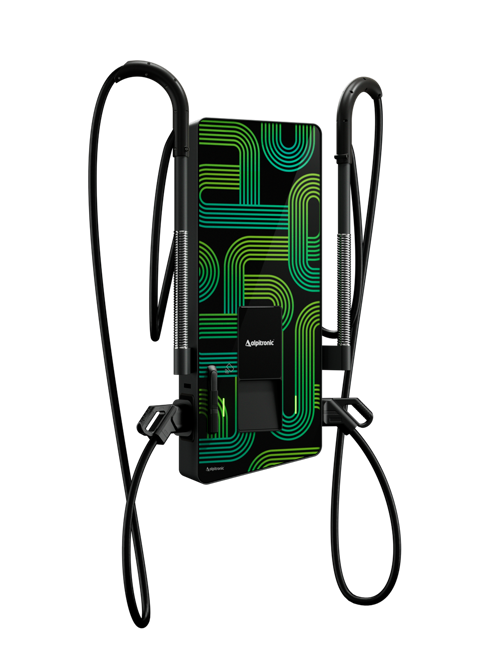

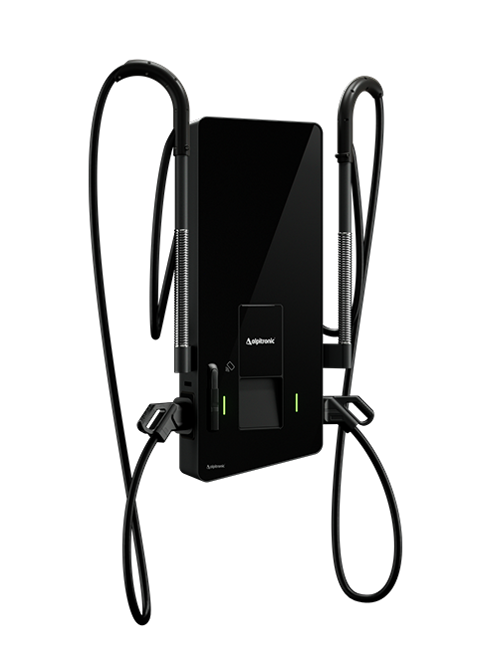

Customizable
Design front
Enhance the compact, high-class design of the HYC50 with a personalized back-printed graphic on the design front.
Customizable
Design front
Enhance the compact, high-class design of the HYC50 with a personalized back-printed graphic on the design front.
Customizable
Design front
Enhance the compact, high-class design of the HYC50 with a personalized back-printed graphic on the design front.
Customizable
Design front
Enhance the compact, high-class design of the HYC50 with a personalized back-printed graphic on the design front.
Customizable
Design front
Enhance the compact, high-class design of the HYC50 with a personalized back-printed graphic on the design front.
Technical specifications
Download DatasheetSystem specifications
01
DC interfaces
CCS1 and CCS2 (150 A), CHAdeMO (125 A)
02
Load and charging management
Smart, dynamic allocation of power modules and distribution of charging power to charging points
03
Operating temperature
-30 °C up to +55 °C
04
Operating height
≤ 4,000 m a.s.l. (For configuration with CHAdeMO cables, the max. installation height is limited to 2,000 m a.s.l.)
05
Environmental conditions, in storage
-40 °C up to +55 °C
06
Environmental conditions, under transport
-40 °C up to +70 °C
07
Humidity (in operation, storage)
0% - 95% relative (non-condensing)
08
Efficiency
up to 97%
09
Protective class
Class I (protective earth connection)
10
Environment pollution degree (IEC 61664-1)
Class 4
11
Noise emission
< 50 dBA (Standard environmental conditions [20° C, 3 m distance])
12
Installation location
Indoor and outdoor installation
13
Type of installation
Wall mount or pedestal (optional foundation base in concrete)
14
Protection rating
IP54
15
Impact resistance
IK10 in accordance with IEC 62262
16
Dimensions (H x W x D)
1300 x 520 x 250 mm
17
Weight
95 - 145 kg (Depending on the configuration)
18
Accessibility
Barrier-Free Access
19
User interface
10.1” touch screen
20
Remote Management
Remote access, diagnostics, software updates
Power Supply
01
AC nominal voltage (RMS)
400 V -15% | +10%
02
AC maximum input current (RMS)
90 A
03
Frequency
50 Hz | 60 Hz
04
Network type
3phase TN-C | TN-S | TN-C-S | TT
05
Power factor
>0.99 (@ full load)
06
Controllable PF range
±0.95
07
THDi
< 5% @ full load
08
Efficiency
up to 97% @ full load
09
Overvoltage category
OVC III, DIN EN 60664-1
10
Integrated coordinated lightning protection (SPD)
Type 1 + 2 + 3
11
Standby power consumption
25 W (Without payment terminal)
Charging Interfaces
01
Maximum total DC output power
50 kW when charging one vehicle, 2 x 25 kW in parallel charging mode of 2 vehicles
02
Output DC voltage range
150 Vdc - 1000 Vdc
03
Charging connection options
CCS1 and CCS2 (150 A), CHAdeMO (125 A)
04
Cable lengths
2.7 m or 4.45 m with Cable Management System (CMS)
Configuration Options
01
Branding
Printed design front panel
02
CMS (Cable Management System)
Mandatory feature for 4.45 m charging cable, for a higher degree of usability
03
Mounting
Wall mounted or pedestal
04
Payment system
Choose between different card readers for credit cards or EC card
05
Law on Weights and Measurements
DC meters available in accordance with the German Calibration Law
06
Parameterization of noise levels
Parameters can be set for the maximum noise level for day and night operation (e.g. for use in sensitive areas)
07
Multilingual system
GUI in 27 languages
Norms, compliance and standards
01
DC standard protocol (communications with the vehicle)
CCS1/2: SAE J1772 / EN 61851-24/DIN SPEC 70121; ISO 15118 | CHAdeMO 1.2;
02
RFID system
ISO/IEC 14443A: MIFARE Classic EV1 (4), MIFARE Classic, MIFARE Mini, MIFARE DESFire EV1 (1), MIFARE Plus S (2), X (2), MIFARE Pro X (1), MIFARE Smart MX (1), MIFARE Ultralight, MIFARE Ultralight C (3), MIFARE Ultralight EV1 (4), NTAG2xx (4), PayPass (1), SLE44R35 (1), SLE66Rxx (my-d move) (1), LEGIC Advant (1); | (1)only UID, (2)Security level, support, (3)without encryption, (4)r/w extended security options available upon request;
03
Network connections
Mobile 4G LTE/2G, Ethernet 10/100Base-TX
04
Communications protocol for the charging infrastructure
Open Charge Point Protocol (OCPP) 1.6 JSON
05
Certifications
TÜV Süd CB DE3-D0030
06
EU Directive
2014/35/EU (Low Voltage Directive), 2014/53/EU (RED), 2011/65/EU (RoHS2), 2015/863/EU (ROHS3), 2012/19/EU (WEEE), 1907/2006 (REACH Regulation)
07
Electrical Safety
IEC 61851-1, IEC 61851-23, IEC 61439-7 (as required by IEC 61851 series), IEC 62311
08
RED
ETSI EN 301 330, ETSI EN 301 511, ETSI EN 301 908-1, ETSI EN 301 893, ETSI EN 301 328
09
EMC
EN 61000-6-4, EN 61000-6-2, IEC 61851-21-2 (INDUSTRIAL ENVIRONMENTS), ETSI EN 301 489-1, ETSI EN 301 489-3; ETSI EN 301 489-52;
